HD2 Pneumatic & Hydraulic Cylinders Built to Ford Specifications

Ford Logo
Why Peninsular Products?
  • Value. Cost. Efficiency
    • Our competitive price structure
    • On-time delivery
    • Prompt response to quotes
    • Highly experienced factory & engineering support service
    • Global Distribution Network

    Ordering Procedure for Ford Standard Cylinders

    When ordering, please specify the following:

    1) Cushion – Head End (Use only if cushion is required)

    2) Cylinder Bore (Specify in inches)

    3) Specify “HD2” (Standard Group Code used in all HD2 Model Numbers)

    4) Specify Piston Rod Diameter

    Bore Size
    Rod Dia.
    1 1/2″
    5/8″ , 1″
    2″
    1″ , 1 3/8″
    2 1/2″
    1″ , 1 3/8″
    3 1/4″
    1 3/8″ , 1 3/4″
    4″
    1 3/4″ , 2″
    5″
    2″ , 2 1/2″
    6″
    2 1/2″ , 3 1/2″
    8″
    3 1/2″ , 4″ , 5 1/2″
    Rod Dia.
    “SM” Style Shown
    5/8 “
    7/16 – 20
    1″
    3/4 – 16
    1 3/8 “
    1 – 14
    1 3/4 “
    1 1/4 – 12
    2″
    1 1/2 – 12
    2 1/2 “
    1 7/8 – 12
    3 1/2 “
    2 1/2 – 12
    4″
    3 – 12
    5 1/2 “
    4 – 12

    5) Specify Piston Rod End Style (All others available)

    Model
    Description
    MP1
    Cap Fixed Clevis
    MS2
    Side Lug Mount
    MT1
    Head Trunnion
    MT2
    Cap Trunnion
    MT4
    Intermediate Fixed Trunnion
    MF1
    Head Rectangular Flange
    Model
    Description
    MF2
    Cap Rectangular Flange
    MF5
    Head Square Flange
    ME5
    Head Rectangular
    ME6
    Cap Rectangular
    MX2
    Tie Rods Extended – Cap End
    MX3
    Tie Rods Extended – Head End

    6) Cylinder Stroke (specify in inches)

    1234

    7) Cushion – Cap End
    (use only if cushion is required)

    8) Port Type

    • N indicates NPTF Threat Ports
    • S indicates SAE Thread Port

    hd2

    9) Seal Type

    • 1 Indicates Cast Iron Piston Rings / Buna N Rod Seals
    • 2 Indicates Buna N (Nitrile) throughout
    • 3 Indicates Viton throughout
    • 4 Cast Iron Piston Rings / Viton Rod Seals

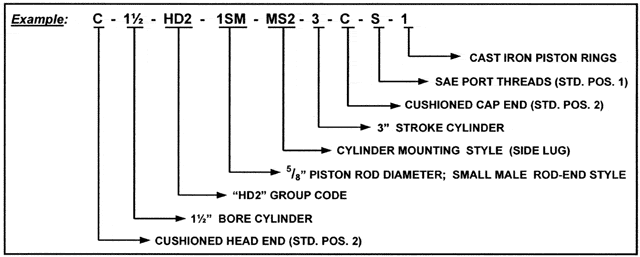

    HD2 chart
