MMAC 100 Series Pneumatic & Hydraulic Cylinders Built to Chrysler Specifications

Daimler Chrysler Logo
Why Peninsular Products?
  • Value. Cost. Efficiency
    • Our competitive price structure
    • On-time delivery
    • Prompt response to quotes
    • Highly experienced factory & engineering support service
    • Global Distribution Network

    Ordering Procedure for Chrysler Standard Cylinders

    When Ordering Please Specify:

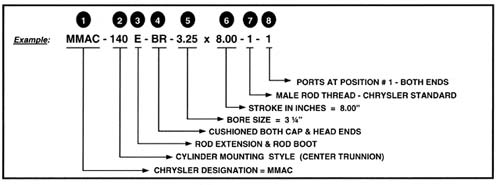

    1) Specify Chrysler Cylinder Series Code “MMAC”

    2) Specify Chrysler Cylinder Model Number:

    Model Number Mount Description
    100 Side Lug Mount (MS2)
    110 Cap Rectangular Flange (MF2)
    120 Head Rectangular Flange (MF1)
    130 Pivot Mount (MP3)
    140 Center Trunnion (MT4)

    *NOTE: Consult Factory if the Cylinder needs to be Proximity Switch Ready

    3) Optional Feature: Specify E to designate Rod Extension & Rod Boot

    Note: Omit from Part Number if not needed

    4) Specify Cushion Location

    1234

    B Cushion on Blind End Only
    R Cushion on Rod End Only
    BR Cushion on both Blind and Rod Ends
    NC No Cushions

    Cushion Adjustment may be at Positions 1,2,3, or 4.
    Cushions are standard at Position 2 & 3.

    5) Specify Cylinder Bore

    6) Specify Cylinder Stroke Rounded to Nearest 2 Decimals

    fordcyl1

    7) Specify Rod End Style:

    1 = Male Thread (Standard Chrysler)
    2 = Female Threads

    8) Specify all Port Locations (Chrysler Ports are Standard at Positions 2 & 3. NPTF Ports are standard. Ports may be located at positions 1,2,3, or 4.)

    100chart

    MMAC-100 Cylinder Parts List
    Pre-Lubricated (250 PSIG Rated)
    Tie Rod Nut Cap End
    Tube O-Ring Cylinder Tube
    Cushion Seal Piston Wear Brand
    Piston U-Cup Tie Rod
    Piston Head
    Rod Seal Rod Cartridge O-Ring
    Rod Cartridge Rod Cartridge Retainer Plate
    Rod Wiper Rod Wear Band
    Cushion Adjustment Piston Rod
