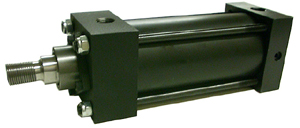

Approved Supplier of NC9 Pneumatic Cylinders Built to Ford Specifications

Ford Logo
Why Peninsular Products?
  • Value. Cost. Efficiency
    • Our competitive price structure
    • On-time delivery
    • Prompt response to quotes
    • Highly experienced factory & engineering support service
    • Global Distribution Network

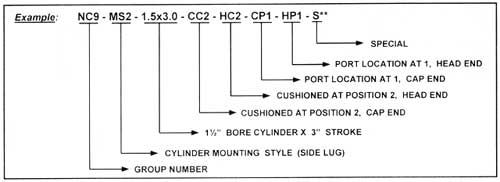

    Ordering Procedure for Ford Standard Cylinders

    When ordering, please specify the following:

    1) Specify Ford Cylinder Model No.

    MODEL # Description
    NC9 (MX1) Tie Rods Extended Both Ends
    NC9 (MX2) Tie Rods Extended Cap End
    NC9 (MX3) Tie Rods Extended Head End
    NC9 (MF1) Head Rectangular Flange (1 1/2″ – 6″)
    NC9 (MF2) Cap Rectangular Flange (1 1/2″ – 6″)
    NC9 (ME3) Head Square (8″ – 12″)
    NC9 (ME4) Cap Square (8″- 12″)
    NC9 (MP1) Cap Fixed Clevis
    NC9 (MS2) Side Lug Mount
    NC9 (MT4) Intermediate Fixed Trunnion

    *Note: Consult Factory if the Cylinder needs to be Proximity Switch Ready

    2) Cylinder Bore & Stroke (Customer Selected)

    Cylinder Bore & Stroke

    • Piston Rod Diameter & Rod-End Style (Do not indicate in model number)
    • Only one Rod Diameter available per Bore Size (See Chart Below)
    Bore Size Rod Diameter MM Thread LL
    1 1/2″ , 2″ , 2 1/2″ 1″ 7/8″- 14
    3 1/4″ 1 3/8″ 1 1/4″ – 12
    4″ , 5″ 13/4″ 11/2″- 12
    6″ 2″ 1 3/4″ – 12
    8″, 10″, 12″ 2 1/2″ 2 1/4″ – 12

    3) Specify Cushion Location

    1234

    • “CC” Indicates Cap End Cushion
    • “HC” Indicates Head End Cushion
    • * Cushion Adjustment is available at position 1, 2, 3, or 4
    • * Cushions should be specified for cylinders with strokes greater than 2.0″

    4) Identify Port Location & Port Thread Size (Must be specified by customer)

    • “CT” Indicates Cap End Port
    • “HT” Indicates Head End Port
    • “P” Indicates NPTF (Standard).
    • Ports available at positions 1, 2, 3, or 4.

    port locations
    **When using “s” in model number, ALL non-standard dimensions must be specified **

    NC9 Cylinders are built to Ford Motor Company Vehicle Operation Specifications. Any deviations from this standard must be approved in writing by the Ford Motor Company.

    NC9 Cylinder Parts List
    Tie Rod Nut Cap End
    Tube O-Ring Cylinder Tube
    Cushion Seal Wear Brand
    Piston U-Cup Tie Rod
    Piston Head
    Rod Seal Rod Cartridge O-Ring
    Rod Cartridge Rod Cartridge Retainer Plate
    Rod Wiper Piston Rod; Specify Rod End Style & Diameter
    Cushion Adjustment
