NC5 & HD1 Pneumatic & Hydraulic Cylinders Built to Ford Specifications

Ford Logo
Why Peninsular Products?
  • Value. Cost. Efficiency
    • Our competitive price structure
    • On-time delivery
    • Prompt response to quotes
    • Highly experienced factory & engineering support service
    • Global Distribution Network

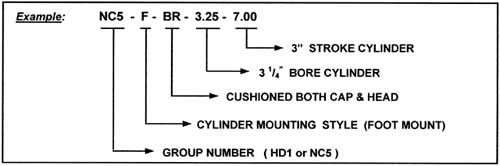

    Ordering Procedure for Ford Standard Cylinders

    When ordering, please specify the following:

    1) Specify NC5 or HD1 (Standard Group Code(s) used in all NC5 & HD1 Model Numbers)

    2) Specify the following

    Specify Description NPTF Double Supply Ports are Standard at the following Positions: (Per Mounting Style)
    F Foot Mount positions 2 & 4
    T Trunnion Mount positions 2 & 4
    C Clevis Mount positions 2 & 4
    R Rod End Flange positions 2 & 4
    B Blind End Flange positions 1 & 3

    12343) Specify Cushion Location

    B Cushion on Blind End
    R Cushion on Rod End
    BR Cushion on both Blind and Rod Ends
    NC No Cushions

    mmac100
    * NOTE: Rod Diameters and Thread Sizes are Standard per Bore Size

    4) Specify Cylinder Bore Size

    Bore Size
    Rod Diameter
    Thread Size
    1 1/2″
    7/8″
    3/4 – 10
    2″
    1 1/8″
    1 – 8
    2 1/2″ , 3 1/4
    1 3/8″
    1 1/4 – 12
    4″ , 4 1/2
    1 5/8″
    1 1/2 – 12
    5″ , 6″
    2 1/8″
    2 – 12
    8″
    3″
    2 3/4 – 12

    5) Specify Cylinder Stroke

    nc5chart

    NC5 & HD1 Cylinder Parts List
    Tie Rod Nut Cap End
    Tube O-Ring Cylinder Tube
    Cushion Seal Wear Brand
    Piston U-Cup Tie Rod
    Piston Head
    Rod Seal Rod Cartridge O-Ring
    Rod Cartridge Rod Cartridge Retainer Plate
    Rod Wiper Piston Rod; Specify Rod End Style
    & Diameter
    Cushion Adjustment
