MMAC 200 Series & MMHC 200 Series Pneumatic & Hydraulic Cylinders Built to Chrysler Specifications

Daimler Chrysler Logo
Why Peninsular Products?
  • Value. Cost. Efficiency
    • Our competitive price structure
    • On-time delivery
    • Prompt response to quotes
    • Highly experienced factory & engineering support service
    • Global Distribution Network

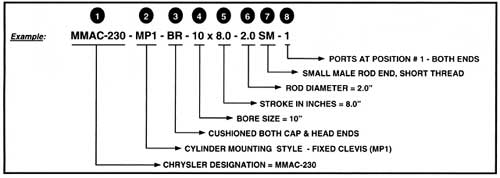

    Ordering Procedure for Chrysler Standard Cylinders

    When Ordering Please Specify:

    1) Specify Chrysler Cylinder Series Code “MMHC”

    2) Specify Chrysler Cylinder Model Number:

    Model Number Mount Description
    205-MS2 Side Lug
    215-MF2 Cap Rectangular Flange
    225-MF1 Head Rectangular Flange
    235-MP1 Cap Fixed Clevis
    245-MT1 Head Trunnion
    255-MS4 Side Tapped
    265-MT2 Cap Trunnion

    *NOTE: Consult Factory if the Cylinder needs to be Proximity Switch Ready

    3) Specify Cushion Location

    1234

    B Cushion on Blind End Only
    R Cushion on Rod End Only
    BR Cushion on both Blind and Rod Ends
    NC No Cushions

    Cushion Adjustment may be at Positions 1,2,3, or 4.
    Cushions are standard at Position 2.

    4) Specify Cylinder Bore

    5) Specify Cylinder Stroke Rounded to Nearest 2 Decimals

    6) Specify Cylinder Rod Diameter

    7) Specify Cylinder Rod End Style:

    B Chrysler Standard (4 flats)
    FM Full Male, Short Thread
    IM Intermediate Male, Short Thread
    SM Short Male, Short Thread with Shoulder
    SF Short Female

    8) Specify Port Locations

    (Note: NPTF Ports are Standard. Port location is standard at Position 1. Ports may be located at Positions 1, 2, 3, or 4.)
