Welded Hydraulic Cylinders

Welded vs Tie-Rod Cylinders

The biggest difference is the end caps that hold the cylinder together. Welded cylinders have the end caps welded to the tube while Tie-rod cylinders are held together by four threaded tie bolts.

Welded cylinders often take up less space, can handle higher operating pressures and withstand harsh environments. Tie-rod cylinders are available with faster delivery times, easily maintained but do take up a larger footprint. Custom design options are available for both types of these high quality cylinders.

Call 800-526-7968 or email sales@peninsularcylinders.com to get your project started!

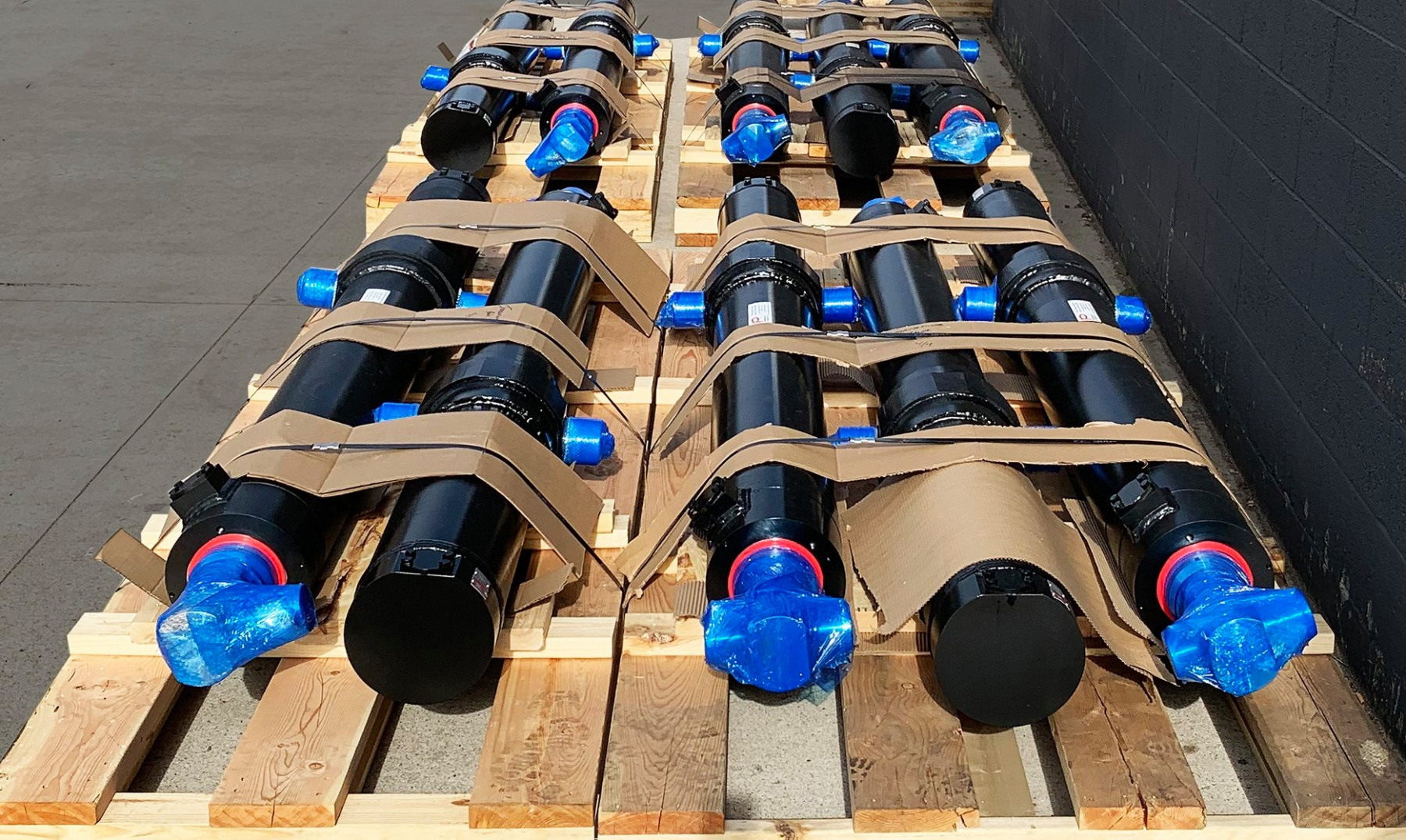

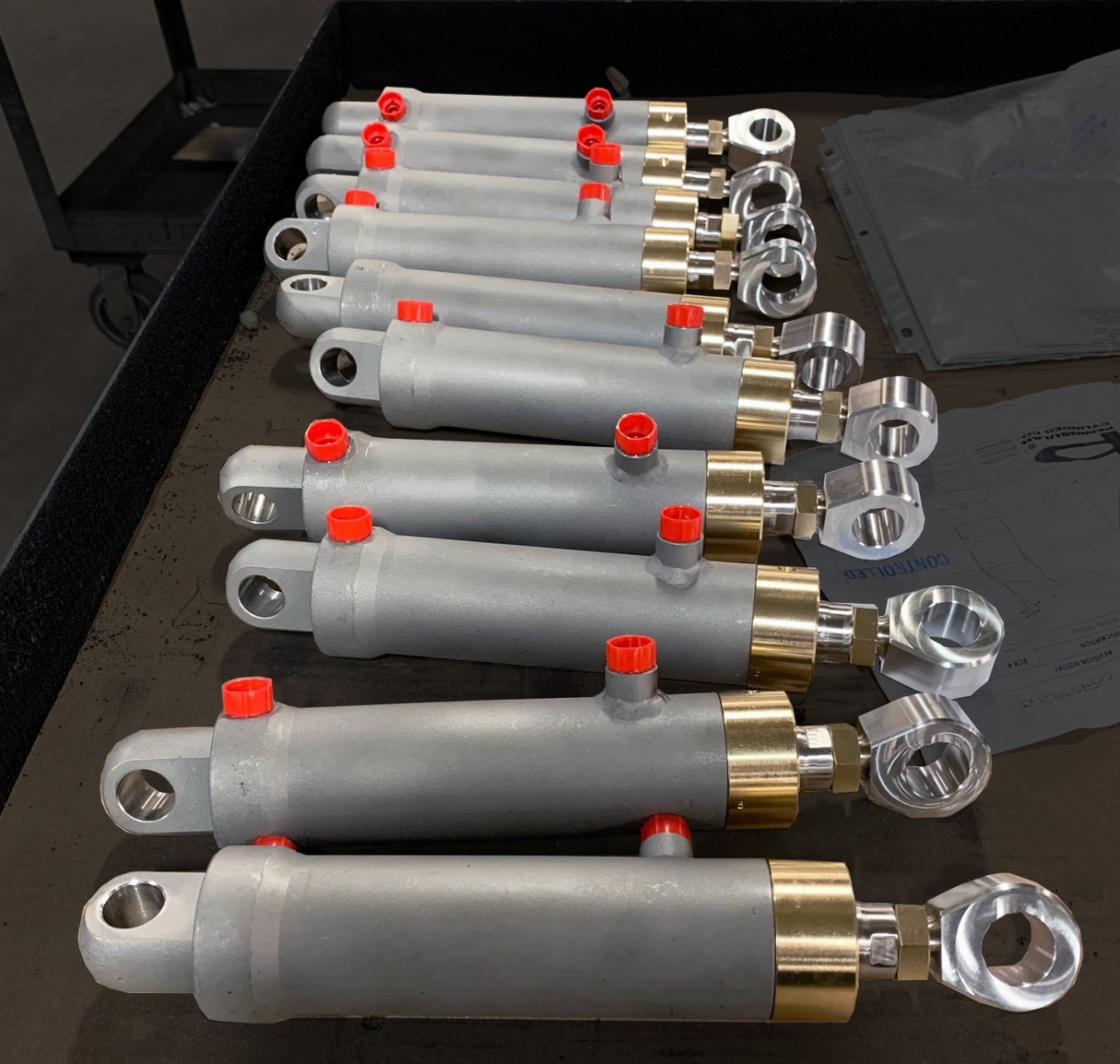

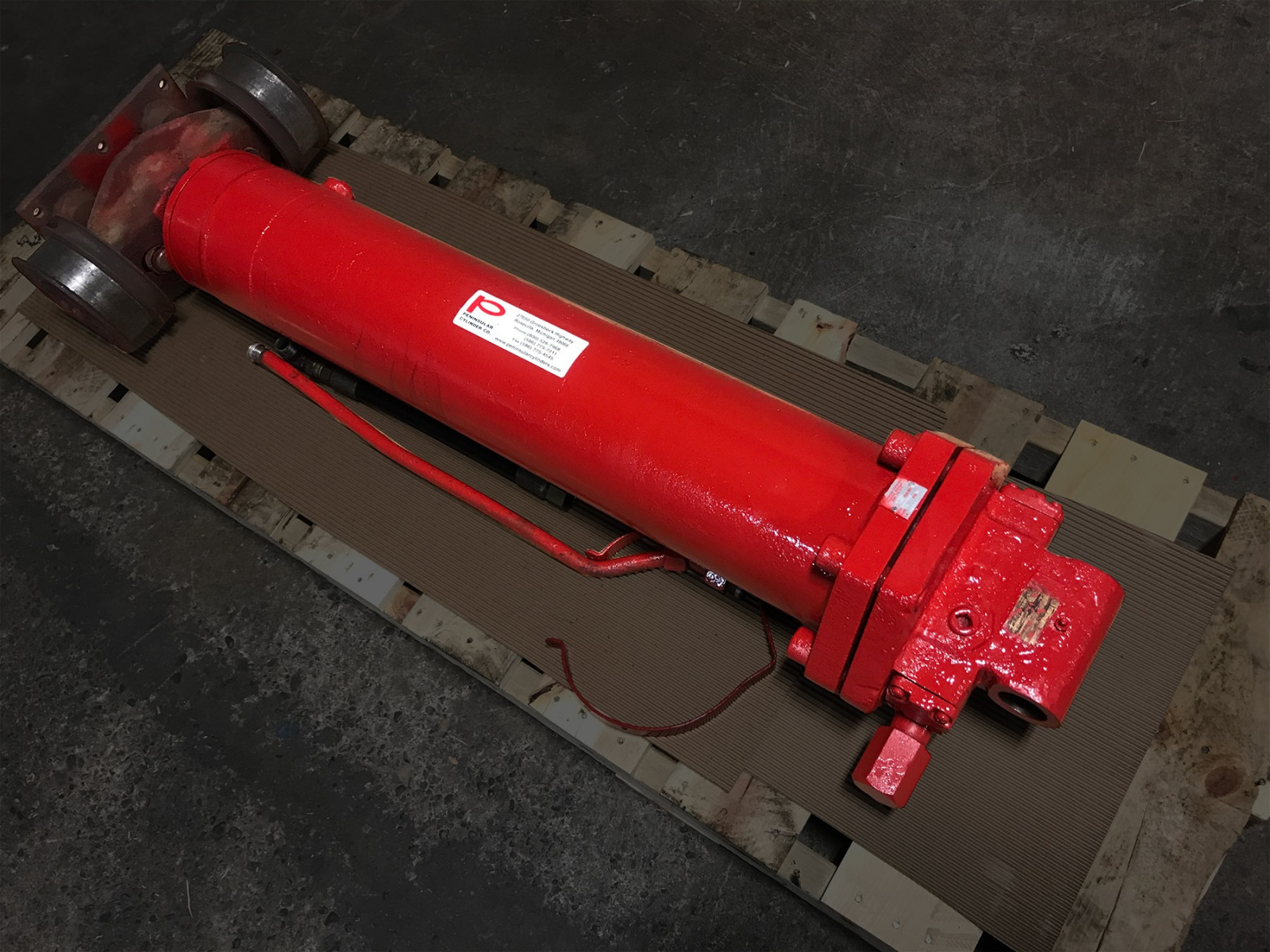

Welded Cylinder Photos (Industrial)

Operating Pressures

Because of the structural advantages of a welded cylinder body the amount of force or pressure that can be handled is great.

• 3,000 – 5,000 PSI
• Higher Pressure (Consult Factory)

Small & Large Bore Sizes

• 1 1/2″ – 8″ Bore (As soon as 4 Weeks)
• 8″ – Large Bore (Consult Factory)

Stroke

• Up to 200″

Frequently Asked Questions

How long does it take?
Typical manufacturing time is as soon as 4 weeks. (Consult Factory for Faster Delivery Times)

Are rush options available?
Yes, expedited options are available depending on the scope of the project

Can welded cylinders be repaired?
Many times a welded cylinder can be repaired. Quotes/Evaluations are free and is where our team will assess the total cost of repair

Is there a warranty?
Yes, click here to view our cylinder warranty

Popular Industrial Applications

• Lifts
• Conveyors
• Foundry & Steel
• Manufacturing
• Mining
• Platforms
• Rail Maintenance
• Ship Building
• Waste & Recycling
• View all the industries we serve

Identify the correct Welded Cylinder for your application:

1. Download a Peninsular Cylinder Sizing Chart (below) – Identify the mounting style of the cylinder in question or use the basic cylinder template (No Mount-MX0) to design your own cylinder.
   Welded Cylinder Mounting Styles
   Welded Type Cylinder-Spherical Eye
   Welded Type Cylinder -Male Eye
   Welded Type Cylinder- No Mount
   Welded Type Cylinder-Female Clevis
2. Print a copy of the chart containing the required mounting style and FILL IN ALL DIMENSIONS and information as requested.
3. FAX the completed chart here:
   Peninsular Cylinder Company
   Attn: Customer Service at FAX: (586) 775-4545.

The Peninsular Cylinder Sales team will contact you within the same business day. Proudly Made in USA, Since 1948
